    Three-dimensional endodontic obturation the safest and easiest way possible

    June 30, 2015
    When we talk about three-dimensional obturation, various thermoplastic techniques come to mind. Endodontics expert Dr. Barry L. Musikant says that by using a passive obturation technique, we can scrupulously avoid the introduction of stresses, maintain the accurate placement of the gutta-percha point, and avoid the introduction of voids that would compromise the seal. The fact that the employment of this technique is simpler and far less expensive is a wonderful marketing feature, but does not surpass the fact that it is safer and kinder to the tooth.

    This article first appeared in the newsletter, DE's Breakthrough Clinical with Stacey Simmons, DDS. Subscribe here.

    When we talk about three-dimensional obturation, various thermoplastic techniques come to mind. Studies have shown that thermoplasticized gutta-percha obturation results in a larger volume of gutta-percha in the canal compared to cold lateral and vertical condensation and obviously single-point obturation. The higher volume of gutta-percha has been taken as proof of a superior seal when, in fact, the seal is dependent upon the intimate relationship of the cement to both the gutta-percha and the canal walls. Consequently, the inference of a higher volume of gutta-percha being proof of a superior seal is secondary to the fact that the cement is forced into a more intimate relationship with the canal walls.

    ALSO BY DR. BARRY MUSIKANT |Endodontic insight into safety, efficiency, and cost savings

    Thermoplastic obturation gives the gutta-percha the ability to adapt to the canal walls. In this case, the thermoplastic property is a plus. Upon placement, the thermoplasticized gutta-percha cools to body temperature, a drop from 201 degrees C to 37 degrees C. In the process, the gutta-percha shrinks anywhere from 3%-5%. (1) This occurs after the small amount of cement that was originally placed is displaced coronally.

    Gap formation is unavoidable. To the extent thermoplasticized gutta-percha shrinks, three-dimensional obturation is compromised. This is true even if multiple lateral canals are initially filled, an event that occurred when the gutta-percha was its most flowable and before shrinkage began.

    Thermoplastic obturation takes several different forms. Carrier-based thermoplastic systems have evolved away from metal and plastic carriers to the point where they are now constructed of two different phases of gutta-percha, with the outer layer thermoplasticized far more than the inner core, which acts as the carrier. All thermoplastic techniques require the minimum placement of cement, because the coronal pathway for the release of excess cement is occluded first, eliminating the escape valve when room temperature systems are employed. Another thermoplastic approach is the use of a heated spreader that first requires the placement of a conventional gutta-percha point to the constriction followed by heated vertical condensation within 5 mm of the apex and conventional condensation within 2 mm of the apex. This form of thermoplastic obturation adapts the gutta-percha to the walls of the canal within the last 2-3 mm of the canal. Interestingly, the gutta-percha that was placed at room temperature is not affected by the heat introduced by the spreader and remains more or less in the same position as when it was originally placed. Strictly speaking, the most apical placement of the gutta-percha has not been thermoplasticized and is essentially a single-point fill. The advantage is no shrinkage.

    ADDITIONAL READING |Trauma and horizontal root fractures of the anterior teeth: A review and case report

    After adaptation of the point to the canal wall via the heated spreader, a void extending from the most apical 2 mm of gutta-percha to the orifice is present. This space is then filled using one of several available glue guns that deposit thermoplasticized gutta-percha through a thin, silver needle. Being thermoplasticized, the entire deposited body of gutta-percha will shrink as it cools to body temperature again, compromising the concept of a true three-dimensional fill. The same problem occurs when the squirt technique is applied, a form of obturation that skips a heated spreader and goes directly to the extrusion of molten gutta-percha from the constriction to the orifice. Again, shrinkage is unavoidable.

    While thermoplastic obturation results in shrinkage, it minimizes the excessive stresses that cold lateral and vertical condensation can be transferred to the root. The application of heat can also be excessive, resulting in thermal shock to the dentin as well as potentially damaging the surrounding periodontal ligament. In fact, one should realize when using a thermoplastic spreader that the duration of the application of heat is critical. Manufacturers suggest no more than a two-second application of 201-degree heat. A duration longer than that increases the temperature to the ligament beyond 10 degrees C that has been documented to damage the ligament. This type of thermoplastic obturation imposes a narrow window for success and subsequently a large window for unintentional iatrogenic damage.

    15july2bcmusikantxray2

    We can avoid the problems of gap formation and excessive application of heat by using room temperature methods of obturation, namely lateral and vertical condensation. These are traditional methods of obturation that have been used by dentists for many decades. The goal is similar to that of thermoplastic obturation, to increase the intimacy of the gutta-percha to the canal walls, thereby driving the cement into a more intimate relationship with the canal walls. There are two major shortcomings to this technique. One, lateral and vertical condensation has the potential to create and propagate microcracks in the dentin that may already be present, leading to a premature vertical root fracture. (2,3) Two, if enough pressure is applied to gutta-percha, it will distort to the shape being imposed. However, gutta-percha is a rubber-like material and will rebound when the pressure is removed. In the actual process of lateral and vertical condensation, the molded gutta-percha will conform to the canal walls displacing excess cement coronally, only to rebound to its original shape when the pressure is removed, leaving a void where the cement was displaced.

    For me, the most irrational aspect of cold vertical and lateral condensation is the application of force via a tapered spreader that can easily exceed the tensile strength of dentin. From a practical point of view, it is difficult to determine whether this particular criterion is being met and even if it is, is the generation of excessive stress truly avoided? This is a perfect example of where a route that completely avoids these possibilities is the safest.

    With thermoplastic obturation in its several forms and cold lateral and vertical condensation producing voids and the potential for excess stresses to the roots, my choice for trauma-free obturation is a single-point technique. It is a passive technique that will not generate excessive stresses. The question asked by those using alternate techniques is whether or not it is an effective means for canal obturation. Like all obturation systems, the effectiveness of the single-point technique is based on the cement. However, the single-point technique requires that the cement be an effective seal in both thick and thin layers and that it be present in sufficient quantity that it can fill all the gaps between the master gutta-percha cone and the walls of the canal. For this to happen, we need an instrument that can flood the canal with cement prior to the placement of the prefitted gutta-percha point.

    15july2bcmusikantfig02

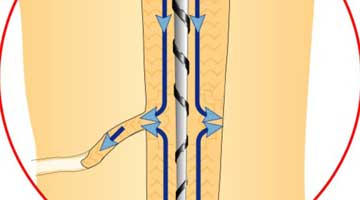

    The bidirectional spiral is the applicator incorporating a design where the coronal flutes drive the cement apically while the last three apical flutes drive the cement coronally. When the bidirectional spiral is loaded with cement, two flows occur, one going corono-apically and the other going from the apex coronally. These two flows of cement collide 3 mm from the tip of the instrument and are driven laterally.
    With the bidirectional spiral being used in an up-and-down motion within the canal never closer than 3-4 mm from the apex, the cement is dispersed vertically as well as laterally along the entire length of the canal, flooding all but the last 2-3 mm of the canal. The master, prefitted gutta-percha point is then liberally coated with cement and placed into position in the canal, driving excess cement coronally and creating a three-dimensional seal along the length.
    15july2bcmusikantxray3
    A word must be said about the cement being used since the long-term seal is a function of its properties. We prefer the use of an epoxy resin (EZ-Fill cement). It is highly flowable. When the prefitted gutta-percha point is placed, it requires very little pressure to drive the cement into an intimate relationship with the canal walls. Furthermore, being a room temperature system, it will warm, not cool, to body temperature, expanding slightly in the process and improving what is already an intimate seal. (4) EZ-Fill is a polymer that does not contract upon polymerization, maintaining dimensional stability. Being a polymer, it is highly resistant to hydrolytic degradation, something that all particulate cements (ZOE, calcium hydroxide, and glass ionomer) are prone to do. It bonds both chemically and physically to dentin and gutta-percha to maintain the seal. It is highly radiopaque and clearly seen on X-ray, but is able to be digested by the macrophage periapically if by chance some is extruded beyond the apex. Perhaps, most importantly, it has 70-plus years of research behind it demonstrating its effectiveness and kindness to the periapical tissues.
    15july2bcmusikantxray1

    We started this discussion with the assumption that it is thermoplastic obturation that is synonymous with three-dimensional obturation. In fact, this is so if the only parameter to measure such fills is the quantity of gutta-percha in the canal. As we can see, this is an irrelevant parameter that does not reflect upon the main goal of obturation, namely to seal the canal. If we measure the quality of a seal, we now understand that while it has always been the function of the cement to create that seal, the seal is not compromised by the varying thicknesses of the cement. This allows us to use cold, passive, single-point techniques that create a three-dimensional seal with the least stress transferred to the root possible.

    One last question that someone might ask is what do we do when the canals are highly oval with a lot of buccal and lingual space after the master point has been placed? One can go two ways. The cement already flooding the canal is occupying that space effectively and needs no further gutta-percha points. Alternatively, one can use a spreader to create a lateral space for the placement of an auxiliary point with the proviso that the pressure applied to the spreader does not exceed the weight of one’s hand. We have no desire to mold the gutta-percha that would induce the rebound effect or expose the roots to any further stress. Rather, we apply just enough pressure to create a space where a subsequent well-coated point is then placed.

    By using a passive obturation technique, we scrupulously avoid the introduction of stresses, maintain the accurate placement of the gutta-percha point, and avoid the introduction of voids that would compromise the seal. The fact that the employment of this technique is simpler and far less expensive is a wonderful marketing feature, but does not surpass the fact that it is safer and kinder to the tooth.

    This article first appeared in the newsletter, DE's Breakthrough Clinical with Stacey Simmons, DDS. Subscribe here.

    Barrymusikantdmd124x124
    Barry L. Musikant, DMD, FACD, FICD, attended the University of Pennsylvania, receiving his BA in 1965 and DMD in 1969. An internship at the Jewish Memorial Hospital (1969-1970) and endodontic residence at Kingsbrook Jewish Medical Center (1970-1972) completed his postgraduate studies. Dr. Musikant is a member of the American Dental Association, American Association of Endodontists, Academy of General Dentistry, The Dental Society of NY, First District Dental Society, Academy of Oral Medicine, Alpha Omega Dental Fraternity, and the American Society of Dental Aesthetics. He is also a fellow of the American College of Dentistry (FACD) and International College of Dentists (ICD). Dr. Musikant is the president, co-director of dental research, and co-founder of Essential Dental Systems (EDS), a dental products manufacturing company located in South Hackensack, New Jersey. His lecture schedule has taken him to more than 250 international and domestic locations. Dr. Musikant has co-authored more than 300 articles in dentistry in various international dental journals from Argentina to Spain, including the major journals of the United States and Canada. As a partner in the largest endodontic practice in Manhattan, Dr. Musikant's 35-plus years of practice experience have made him one of the top authorities in endodontics.

    References
    1. Lee CQ, Chang Y, Cobb CM, Robinson S, Hellmuth EM. Dimensional stability of thermosensitive gutta-percha. Journal of Endodontics 1997;22(12).
    2. Shemesh H, Bier CAS, Wu MK, Tanomaru-Filho M, Wesselink PR. The effects of canal preparation and filling on the incidence of dentinal defects. Int Endod J. 2009;42(3):208-213.
    3. Kumaran P, Sivapriya E, Indhramohan J, Gopikrishna V, Savadamoorthi KS, Pradeepkumar AR. Dentinal defects before and after rotary root canal instrumentation with three different obturation techniques and two obturating materials. J Conserv Dent. Nov. 2013;16(6):522-526.
    4. Weathers K, Wahl P. EZ-Fill obturation system lives up to its name. Practical Endodontics 1999;(8):5.
